RTP Pockels Cell
Key words:
Classification:
Product Description

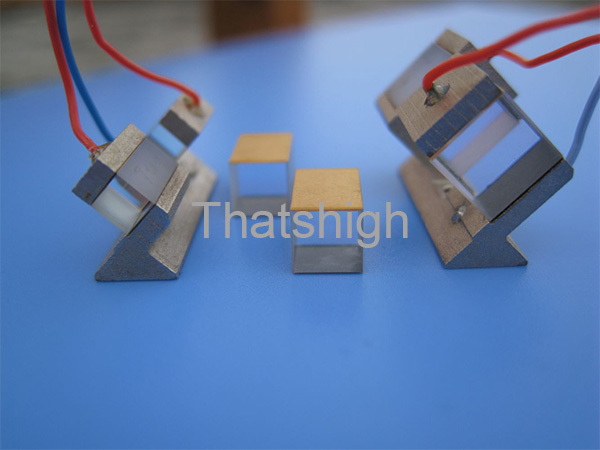

RTP Pockels cell
RTP Pockels cell is built using two RTP elements in a temperature compensating design. The unique properties of RTP, including high electrical resistivity(~1011-1012W·cm) and a high damage threshold, result in a pockels cell with excellent properties. These Q-switches have been tested at 100kHz, with no sign of piezoelectric ringing.
Advantages:
High Damage Threshold
No Piezoelectric Ringing
Low Insertion Loss
Thermal Compensating Design
Non-hygroscopic
High Extinction and Contrast Ratio
Spectral range 500-3000 nm
Specifications:
|
Aperture (mm) |
2×2-15×15 |
|
Extinction Ratio |
> 20 dB @ 633 nm |
|
Wavefront Distortion |
< λ/4 @ 633 nm |
|
Coating |
AR-coating (R<0.1% @ 1064 nm) |
|
LIDT @ 1064 nm |
> 600 MW/cm2 (10 ns, 10 Hz) |
|
Typical Size（mm） |
6×6×15 |
6×6×25 |
7×7×15 |
7×7×25 |
8×8×15 |
8×8×25 |
|
λ/4 Voltage@1064nm |
2.4 kV± 0.2 kV |
1.2 kV± 0.1 kV |
2.8 kV± 0.2 kV |
1.4 kV± 0.1 kV |
3.2 kV± 0.2 kV |
1.6 kV± 0.1 kV |
