RIGHT ANGLE PRISM
Key words:
Classification:
Product Description
RIGHT ANGLE PRISM
High precision RAP: high angle precision(<5 second), high flatness(<lambda/10), high angle pyramid tolerance(<5 second) are available upon requirement.
PARAMETER
|
Specifications |
|
|
Material |
BK7 Grade A Optical Glass |
|
Dimension Tolerance |
+0.0,-0.2mm |
|
Clear Aperture |
>80% |
|
Angle Tolerance |
See the Table |
|
Flatness |
λ/2@633nm |
|
Surface Quality |
60/40 scratch/dig |
|
Bevel |
0.2mm to 0.5mm |
|
Coating |
Uncoated |
|

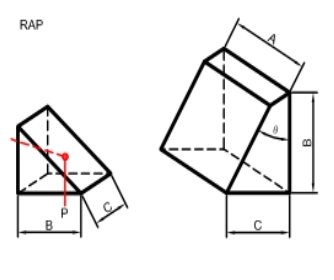

Size(mm) |
3 min.Deviation |
1 min.Deviation |
30 Sec.Deviation |
|
A,B,C |
Part No |
Part No |
Part No |
|
A=B=C=2.0 |
RAP1101 |
RAP1201 |
RAP1301 |
|
A=B=C=3.2 |
RAP1102 |
RAP1202 |
RAP1302 |
|
A=B=C=5.0 |
RAP1103 |
RAP1203 |
RAP1303 |
|
A=B=C=10.0 |
RAP1104 |
RAP1204 |
RAP1304 |
|
A=B=C=12.7 |
RAP1105 |
RAP1205 |
RAP1305 |
|
A=B=C=15.0 |
RAP1106 |
RAP1206 |
RAP1306 |
|
A=B=C=20.0 |
RAP1107 |
RAP1207 |
RAP1307 |
|
A=B=C=25.4 |
RAP1108 |
RAP1208 |
RAP1308 |
|
A=B=C=30.0 |
RAP1109 |
RAP1209 |
RAP1309 |
