OUR PRODUCTS

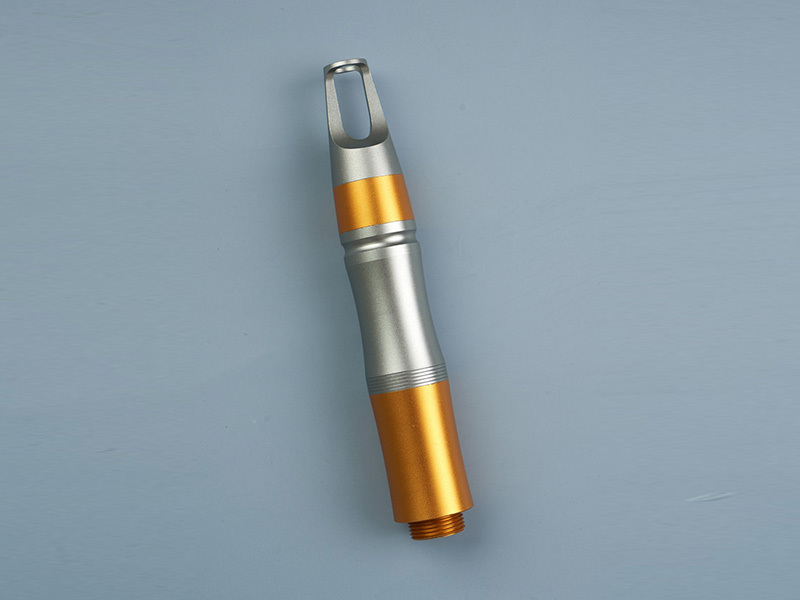

Dye Laser Handpiece
|
Type |
585nm handpiece |
|
Dimension |
Ф31.5*178mm |
|
Application |
Input 532nm; output 585nm |
|
Conversion efficiency |
65-75% |
|
Beam Size |
Input 8mm, output 2-3mm |
|
Life Time |
> 40K pulses |
|
Threaded interface |
M22*1.5, Length:8mm |
Specification: 650nm
|
Type |
650nm handpiece |
|
Dimension |
Ф31.5*178mm |
|
Application |
Input 532nm; output 650nm |
|
Conversion efficiency |
45-55% |
|
Beam Size |
Input 8mm, output 2-3mm |
|
Life Time |
> 40K pulses |
|
Threaded interface |
M22*1.5, Length:8mm |
Important Notes:
1. Input must be pure 532nm laser.
2. Flat top beam is perferred.
3. Power density should be ≤0.8J/cm²,8-10ns.
4. Repetition Rate of 1-2Hz is recommended for extended life time.
