Cr:YAG
Key words:
Classification:
Product Description

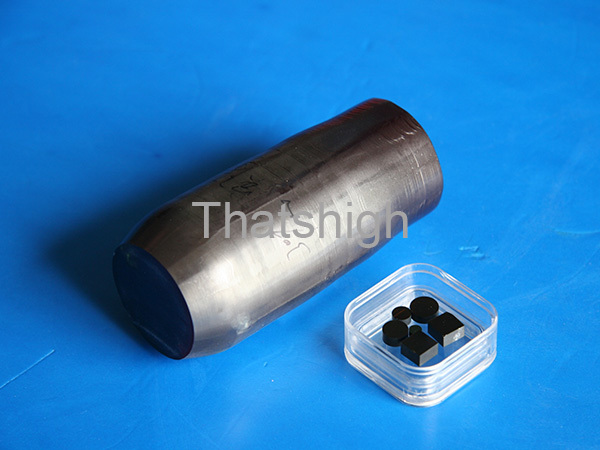

Chromium Doped Yttrium Aluminum Garnet (Cr4+:YAG) Crystal is excellent E-O material for passively Q-switching diode pumped or lamp-pumped Nd:YAG, Nd:YLF, Nd:YVO4 and other Nd (or Yb) doped lasers at wavelength 0.8~1.2µm. With diverse advantages of chemically
stable, durable, UV resistant, good thermal conductivity, high damage threshold ( >500 MW/cm2) and easy to be operated,
Cr4+:YAG is edging out traditional materials, such as LiF, organic Dye and color centers.
THATSHIGH Specifications for Cr4+: YAG Crystal
|
Dimensions |
Surface Area |
2×2 mm2 ~ 14×14mm2 |
|
Length |
0.1mm ~ 12mm |
|
|
Doping Concentration |
0.05mol% ~ 0.6mol% |
|
|
Initial Transmission |
5% ~ 95% |
|
|
Flatness |
< λ/10 @633nm |
|
|
Wavefront Distortion |
< λ/6 @633nm |
|
|
Parallelism |
< 30" |
|
|
Surface Quality [S/D] |
10/5 |
|
|
AR-coating |
R<0.2% @ 1064 nm |
|
THATSHIGH Cr4+:YAG Crystal Main Features
Simple to use; No need of any external driving system.
Compact setup.
Working frequency as high as 10kHz.
