BBO Pockels Cell

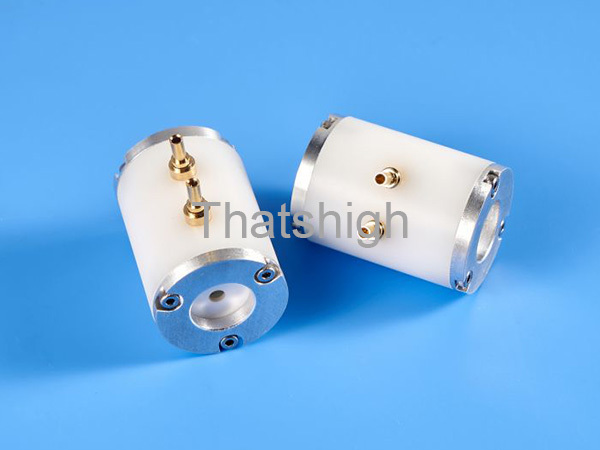

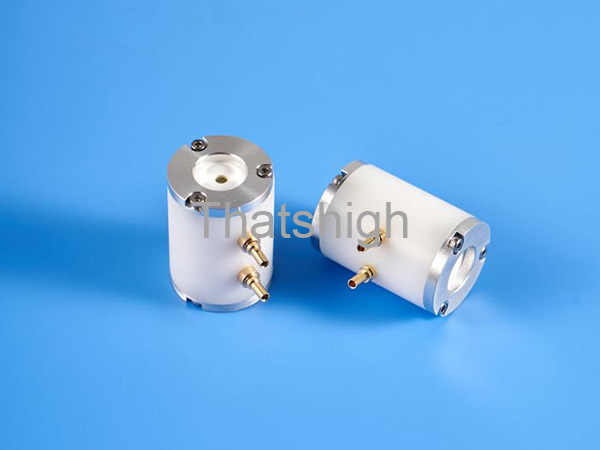

BBO Pockels cell
Application of BBO Pockels cell:
BBO Pockels Cells are used to change the polarization state of light passing through it when a voltage is applied to the electrodes of electro-optic crystals. Thatshigh BBO Pockels Cells are the better alternative to KD*P Pockels Cells for high average power and high repetition rate applications. BBO Pockels Cells operate from approximately 0.2 to 1.65 µm and aren't subject to tracking degradation. Due to the low piezoelectric coupling coefficients of BBO, our cells function at repetition rates of hundreds of kilohertz. The product series BBO Pockels Cells employs single crystal , dual crystal and low-voltage geometry. Moreover, we also provide different types of products and customized services to meet customer needs.
High repetition rate DPSS Q-switch
High repetition rate regenerative amplifier control
Research
Beam chopper
Cavity dumping
THATSHIGH Features of BBO Pockels Cell:
High extinction ratio
High damage threshold
High repetition rate
Minimal piezoelectric ringing
Low absorption
Ceramic protectaperture
Compact design
Easy adjustment
Typical Performance @1064nm
|
Type |
EOB-3A |
EOB-3B |
EOB-4A |
EOB-4B |
EOB-5A |
EOB-5B |
|
Typical Dimension of Pockels cell |
Ф25.4*35mm |
Ф25.4*40mm |
Ф25.4*35mm |
Ф25.4*40mm |
Ф25.4*35mm |
Ф25.4*40mm |
|
Dimension of Crystal |
3X3X20mm |
3X3X25mm |
4X4X20mm |
4X4X25mm |
5X5X20mm |
5X5X25mm |
| Quantity of crystals | 1 | 1 | 1 | 1 | 1 | 1 |
|
Clear Aperture |
Ф2.6mm |
Ф3.6mm |
Ф4.6mm |
|||
|
Single pass optical transmission |
>98% |
>98% |
>98% |
>98% |
>98% |
>98% |
|
Extinction Ratio@1064nm |
>1000:1 (30db) |
>1000:1 (30db) |
>1000:1 (30db) |
>1000:1 (30db) |
>1000:1 (30db) |
>1000:1 (30db) |
|
λ/4 Voltage |
3500V |
2800V |
4900V |
3900V |
5900V |
4700V |
|
Capacitance |
<3.0pF |
<3.0pF |
<3.0F |
<3.0pF |
<3.0pF |
<3.0pF |
|
DamageThreshold |
750MW/cm²@1064nm.10ns,10Hz |
|||||
Typical Performance @1064nm of Dual crystal
|
Product Type |
EOB-T3A |
|
Dimention |
D25.4mm×58.4mm |
| Quantity of crystals | 1 |
|
Φ2.5mm |
|
|
Extinction Ratio@1064nm |
＞500:1 |
|
Voltage@1064nm |
1600V |
|
Capacitance |
6.0pF |
|
Transmittance@1064nm |
>98% |
|
Damage Threshold |
500MW/cm2，10ns，10Hz@1064nm |
Seal Housing Schematic Diagram
Seal Housing Schematic Diagram of Dual crystal
