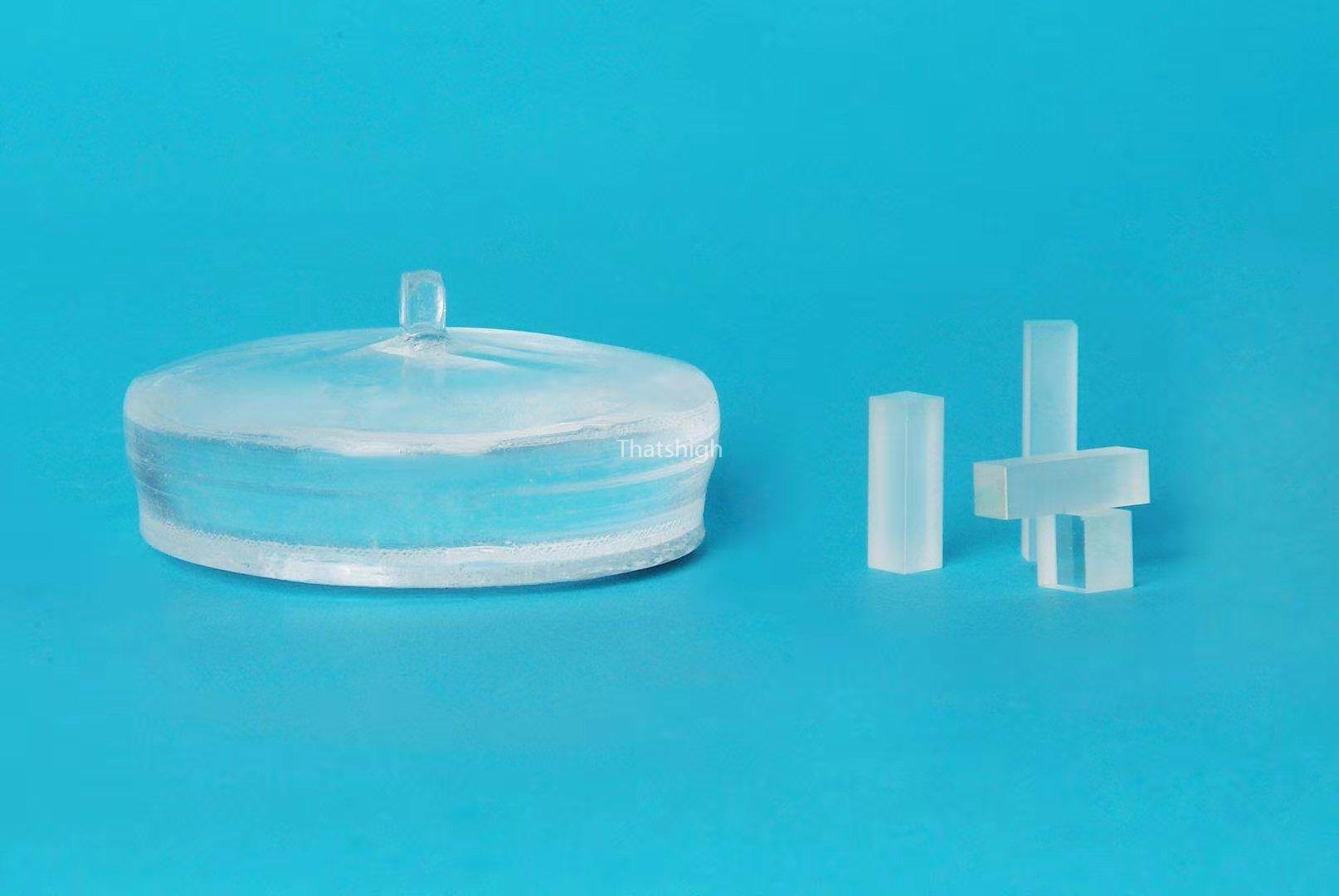

BBO Crystal
Key words:
BBO Crystal
Classification:
Product Description
HATSHIGH BBO is featured by:
1.Broad phase matchable range from 409.6 nm to 3500 nm;
2.Wide transmission region from 190 nm to 3500 nm;
3.Large effective second-harmonic-generation (SHG) coefficient about 6 times greater than that of KDP crystal;
4.High damage threshold;
5.High optical homogeneity with dn » 10-6/cm;
6.Wide temperature-bandwidth of about 55°C.
THATSHIGH Offers BBO of:
1.Strict quality control;
2.Crystal length from 0.02mm to 25mm and size up to 15x15x15 mm3;
3.P-coatings, AR-coatings, mounts and re-polishing services;
4.A large quantity of crystals in stock
THATSHIGH Specifications for BBO Crystal
|
Dimension Tolerance |
(W±0.1mm) ×(H±0.1mm) ×(L+0.5/-0.1mm) (L≥2.5mm) |
|
Angle Tolerance |
Δθ ≤ 0.25° Δφ ≤ 0.25° |
|
Clear Aperture |
90% of central area |
|
Chamfer |
≤ 0.2mm @45° |
|
Chip |
≤ 0.1mm |
|
Damage Threshold |
> 1 TEM00, 10ns, 10HZ (uncoated) |
|
Flatness |
< λ/8 @ 633nm |
|
Parallelism |
< 20" |
|
Perpendicularity |
≤ 5' |
|
Surface Quality [S/D] |
< 10/5 |
|
Wavefront Distortion |
< λ/8 @ 633nm |
|
Interior Quality |
No visible scattering paths or centers [inspected by 50mW green laser] |
