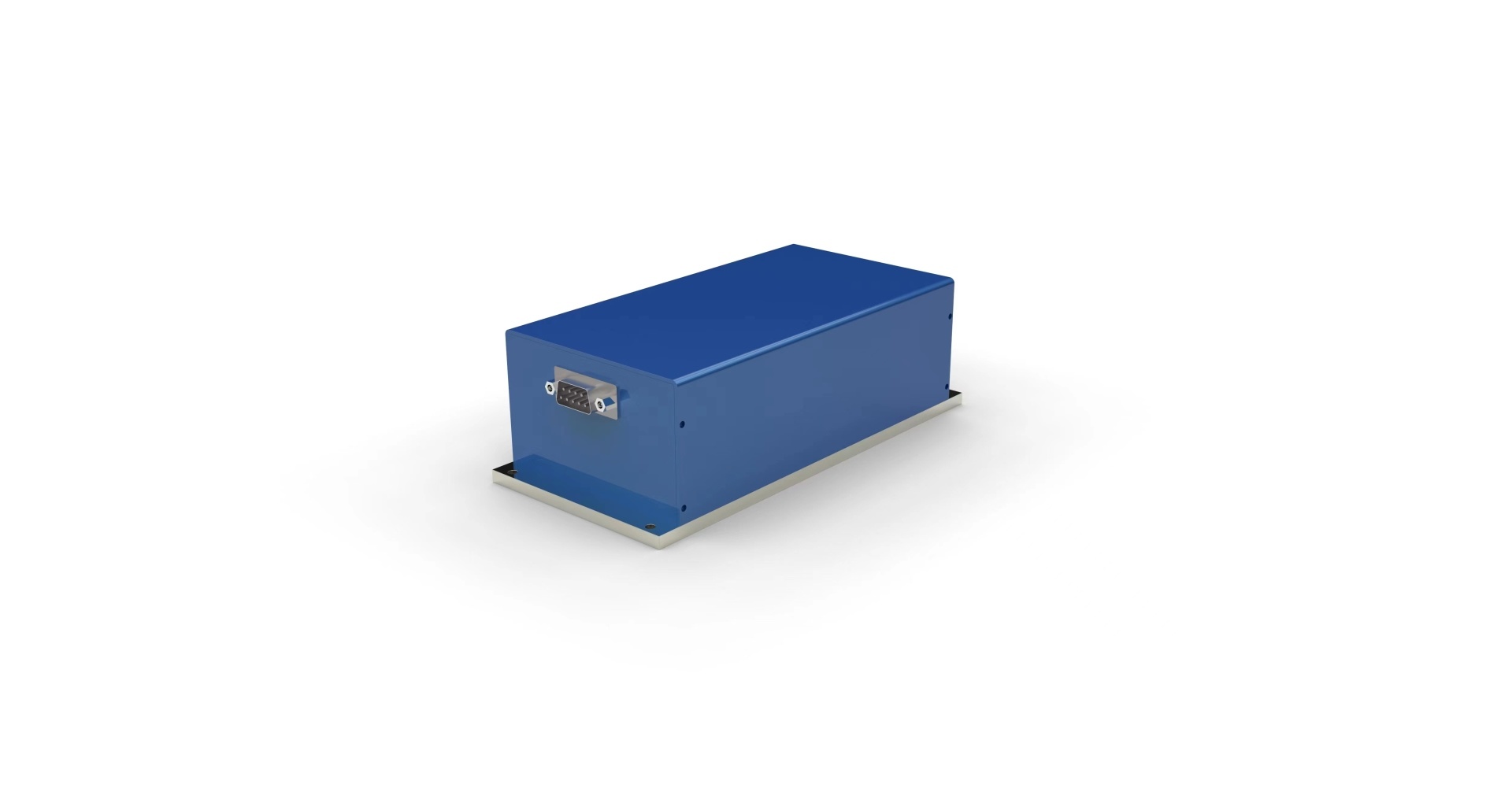

BBO Pockels cell Driver
Features:
HV rise/fall time, 2-4ns@800V, 6-12ns@2400V, 10-20ns@4000V
HV pulse amplitude up to 4.5 kV
Pulse repetition rate up to 200kHz
Typical performance:
|
CATALOGUE NUMBER OF DRIVER |
PCD-2.5V-30 |
PCD-4.5V-10 |
PCD-2.5V-200/FS |
PCD-2.5V-100/FS |
|
Maximal HV operation voltage |
3kV |
4.5kV |
3 kV |
3 kV |
|
Output polarity |
Negaitive |
Negaitive |
Bipolar |
Negaitive |
|
HV pulse rise time, typical |
- |
- |
7 -9ns |
- |
|
HV pulse fall time, typical |
7-9 ns |
14 -18ns |
7 -9ns |
7 -9ns |
|
Maximal HV pulse repetition rate |
30 kHz |
10kHz |
200 kHz |
150 kHz |
|
Requirement for external triggering pulse amplitude |
3-5V TTL(10mA) |
|||
|
External powering requirements: |
||||
|
DC supply |
23-25 V, 1.5A |
23…25 V, 4.5A |
||
|
HV power supply |
2.2kV, 7 W |
4 kV, 7W |
2.2 kV, 60W |
2.2 kV, 40W |
|
Dimensions (L x W x H): |
||||
|
Driver board |
Fig.5 |
Fig.6 |
Fig.7 |
Fig.8 |
|
HV power supply |
Fig.9 |
Fig.9 |
||
