DKDP Pockels Cell

Retail price
0.0
Market price
0.0
Number of views:
1020
Product serial number
Quantity
-
+
Stock:
1
Description
Parameters

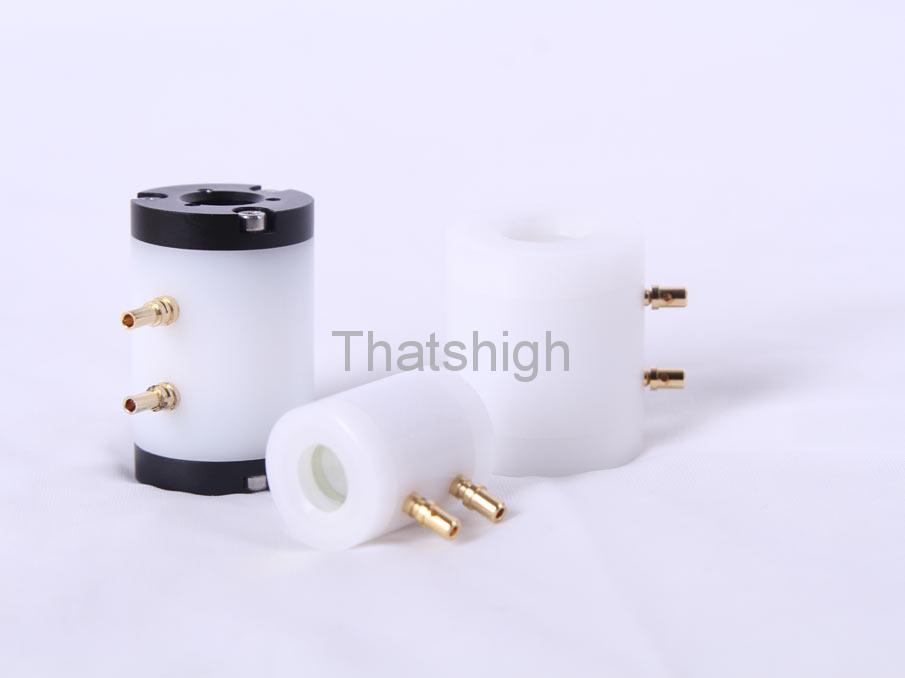

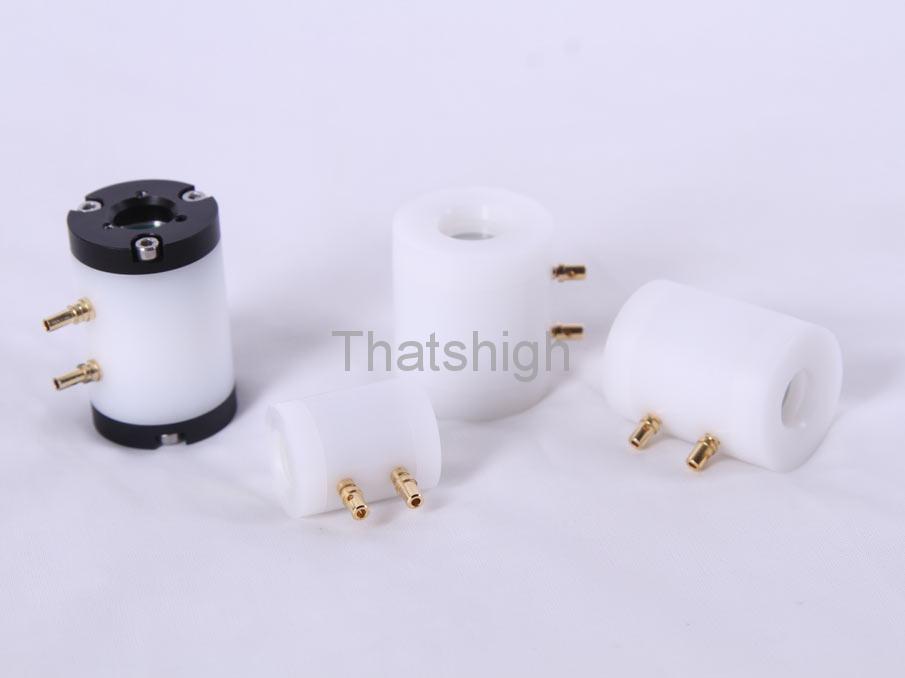

DKDP Pockels cell



Application of DKDP Pockels cell:
With excellent physical and optical property, DKDP series Pockels cells are widely used in laser systems with large caliber, high power and narrow pulse width. They are among the optimal E-O Q-switches used in pulse laser systems, including: OEM laser systems; Medical/cosmetic lasers; Versatile R&D laser platforms; Military & aerospace laser systems.



THATSHIGH Specifications of DKDP Pockels cell:

Extinction Ratio

>5000:1

Wavefront Distortion

< λ/8 @633nm

Capacitance

according to different model

Single Pass Optical Transmission

>98%

Damage Threshold

>750MW/cm2 @1064nm, 10ns 10Hz

Spectral Range

240nm~1400nm

Typical Aperture Diameter

8mm~30mm



THATSHIGH Features of DKDP Pockels Cell:
High deuteration (>98.0%) DKDP.
No static birefringence.
No photorefractive damage.
Resistant to environmental temperature.
Excellent electric-optical properties.
Sealant and adhesive free.
High extinction ratio
High damage threshold
Low λ/4 Voltage
Single Pass Optical Transmission
Compact design
Easy adjustment



Typical Performance @1064nm

Type

EOD-8Ga

EOD-8Gpa

EOD-10Ga

EOD-10Gpa

EOD-11Gpa

EOD-13Ga

Dimension

Ф19*24mm

Ф20*29mm

Ф25.4*32mm

Ф25.4*39mm

Ф28*33mm

Ф25.3*42.5mm

Clear Aperture

Ф8mm

Ф8mm

Ф10mm

Ф10mm

Ф11mm

Ф13mm

Single pass optical transmission

>98%

>98%

>98%

>98%

>98%

>98%

Wavefront Distortion

<λ/8

<λ/8

<λ/8

<λ/8

<λ/8

<λ/8

Extinction

Ratio@1064nm

>5000:1

>5000:1

>5000:1

>5000:1

>5000:1

>5000:1

λ/4 Voltage

3200V+/-200V

3200V+/-200V

3200V+/-200V

3200V+/-200V

3200V+/-200V

3200V+/-200V

Capacitance

<4.5pF

<4.5pF

<5pF

<5pF

<6.5pF

<8pF

DamageThreshold

750MW/cm²@1064nm.10ns,10Hz



Seal Housing Schematic Diagram

DKDP Pockels CellDKDP Pockels CellDKDP Pockels Cell

DKDP Pockels CellDKDP Pockels CellDKDP Pockels Cell



Application Notices on DKDP Series Q-switch
Core exposure or loose contact is forbidden.
Recommend to be operated at constant temperature.
Please avoid any intense impact or vibration.
Unauthorized disassembly is forbidden.
